The sericin extracted from the silkworm cocoon was used as a inexperienced coating agent within the synthesis strategy of AgNPs. The synthesis process and the characterization of NPs are descried in supplemental doc (Fig. S1 and Desk S1). Just like peroxidase enzymes, these NPs can catalyze the response of hydrogen peroxide with a redox coloration substrate, thus resulting in a change within the coloration of the indicator. This functionality was applied for paper to manufacture a colorimetric sensor with fast and in situ detection of hydrogen peroxide. Since hydrogen peroxide is the product of the glucose oxidation response within the presence of glucose oxidase enzyme, the efficiency of the fabricated sensor is verified for the detection of the focus of glucose, as offered intimately within the following sections.
Peroxidase mimicking properties of sericin-AgNPs
The tactic proposed by Hashimoto was used to substantiate the peroxidation habits of sericin-AgNPs25. In a typical experiment, a probe delicate to ·OH radicals similar to 5.0 × 10–4 M terephthalic acid, 1.0 × 10–2 M hydrogen peroxide and sericin-AgNPs resolution with a sure focus within the vary of 0.0–0.1 μg/ ml was blended in 0.1 M acetic acid-sodium acetate buffer (pH = 4). The ready combination was heated at 40 °C for 40 min. The interplay of terephthalic acid with ·OH radicals results in the formation of 2-hydroxy terephthalic acid. The ensuing compound has fluorescence emission within the vary from 400 to 500 nm. Based mostly on the fluorescence spectra proven in Fig. 1a, the fluorescence depth of 2-hydroxy terephthalic acid is steadily enhanced by rising the NP focus. The definitive cause for this enhancement is the manufacturing of ·OH radicals from the decomposition of hydrogen peroxide. This response is catalyzed by sericin-AgNPs on account of their pseudo-peroxidation properties.
(a) Analysis the peroxidase exercise of sericin-AgNPs by monitoring the fluorescence emission of 2-hydroxy terephthalic acid, the product of terephthalic acid and ·OH radicals interplay. The fluorescence depth was proportional to focus of sericin-AgNPs which was modified from 0.0 (A) to 0.1 (F) μg/ mL. (b) Analysis the impact of pure H2O2, sericin-AgNPs, a mix of H2O2 and sericin, a mix of H2O2 and sericin-AgNPs, and a mix of H2O2 and naked AgNPs on the TMB oxidation response. The evaluation was performed at optimum circumstances.
Within the colorimetric detection of hydrogen peroxide, the analyte decomposes after being certain to the floor of AgNPs, thereby producing ·OH radicals. These radicals are stabilized on the floor of the NPs on account of partial electron change interplay. The NPs might be adsorbed to the floor of the redox indicator via electrostatic interplay. In consequence, the circumstances for the oxidation of the indicator with •OH radicals are offered, which may in flip type a coloured product26.
As a proof of idea, 5 completely different exams had been carried out on the paper floor underneath optimum circumstances (described within the subsequent part), through which TMB was uncovered to pure H2O2, sericin-AgNPs, a mix of H2O2 and sericin, a mix of H2O2 and sericin-AgNPs, and a mix of H2O2 and naked AgNPs. As proven in Fig. 1b, the formation of oxidized TMB together with the looks of intense blue coloration happens solely within the simultaneous presence of H2O2 and sericin-AgNPs, indicating the catalytic function of sericin-AgNPs within the decomposition of H2O2 and the interplay of the novel product with the redox indicator.
Optimum circumstances for willpower of hydrogen peroxide
The response of the paper sensor for optimum measurement of hydrogen peroxide considerably is dependent upon the catalytic exercise of nanozyme within the oxidation response of the redox indicator. Due to this fact, the effectivity of the fabricated sensor might be elevated by optimizing components similar to the kind and focus of the redox indicator, NP focus, and pH and focus of buffer. Additionally, temperature and time of interplay ought to be optimized. To carry out these experiments, 5.0 μL of hydrogen peroxide resolution with a focus of 140.0 mg/dL was used.
For the preliminary take a look at, NP resolution (0.5 mg/ml) was injected into the nanozyme zone. The detection zone was stuffed with a mix of redox indicator and acetic acid-sodium acetate buffer with a focus of 0.05 mol/L (pH = 4). The ultimate focus of indicator (TMB, OPD or ABTS) was equal to five.0 × 10–3 mol/L. By including H2O2 to the injection zone, the colour change of the indications was from colorless to blue, yellow, and inexperienced for TMB, OPD, and ABTS, respectively (Fig. S2a). As noticed, the synthesized nanozyme reveals higher peroxidase habits for the oxidation of TMB.
By altering the focus of TMB within the vary of 1.0 × 10–3 mol/L – 9.0 × 10–3 mol/L, the response of the sensor steadily elevated as much as 5.0 × 10–3 mol/L. No important change was noticed within the coloration of the indicator at greater concentrations (Fig. S2b).
To optimize the focus of nanozyme, completely different options had been ready with concentrations within the vary of 0.1–1.3 mg/ml. The catalytic habits of the nanozyme is fastened at 0.5 mg/ml (Fig. S2c). To proceed the examine, the focus of nanozyme was chosen to be 0.5 mg/ml.
The catalytic exercise of nanozymes is dependent upon the pH of the medium. For instance, the decomposition of hydrogen peroxide within the presence of silver nanozymes results in the manufacturing of ·OH radicals at acidic pH or launch of O2 at alkaline pH27. Since ·OH radicals are wanted to oxidize TMB, it’s preferable to observe the response in an acidic medium. The catalytic exercise of nanozyme was investigated utilizing acetic acid-sodium acetate buffer with a focus of 5.0 × 10–2 mol/L in a pH vary of three.0‒7.0. As seen in Fig. S2d, the catalytic habits of nanozyme, and consequently the response of the sensor might be improved by altering the pH of medium from 3.0 to 4.5. Within the case of extra acidic media, the excessive focus of hydronium ions prevents ·OH radicals or TMB from adsorption on the floor of the nanozyme, thereby avoiding the incidence of the redox oxidation response. At greater pH values, the solubility of TMB within the buffer decreases, leading to a destructive impact on the sensor response28.
After adjustment of the pH worth, the experiment was continued by various the buffer focus within the vary from 0.01Â mol/L to 0.15Â mol/L. Based on Fig. S2e, the very best response of the sensor is noticed within the buffer medium with a focus of 0.05Â mol/L.
With the intention to examine the impact of temperature on the peroxidase exercise of nanozyme, the response of hydrogen peroxide with TMB was repeated within the temperature vary of 25‒55 °C with 5 °C steps. As seen in Fig. S2f, the oxidation strategy of TMB and the formation of blue diamine/diimine complicated are enhanced by rising the temperature from 25 °C to 35 °C28. At greater temperatures, the effectivity of the sensor decreases on account of some causes such because the destruction of the silver nanozyme, the inactivation of the nanozyme exercise, or the formation of a yellow diamine product28.
To find out the time required for the whole interplay of hydrogen peroxide with TMB, the examine was adopted at two temperatures (25 °C and 35 °C). It was discovered that the colour change of the sensor at temperatures of 35 °C and 25 °C was fixed on the identical worth after 3.0 (Fig. S2g) and 4.5 (Fig. S2h) min, respectively. For the reason that goal of the examine was to develop a user-friendly machine for detection of hydrogen peroxide and glucose, and on account of the truth that offering heating units was not attainable in all circumstances, the experiment was most well-liked to happen at a temperature of 25 °C and the info was collected after 4.5 min.
Quantitative evaluation of hydrogen peroxide
After creating the sensor with optimized parts, the colour adjustments of TMB had been evaluated within the presence of various hydrogen peroxide concentrations (0.0‒300.0 mg/dL). From Fig. 2a, the colour of the sensor adjustments from colorless to intense blue when rising the hydrogen peroxide focus The variation in sensor response is proven extra noticeably within the coloration distinction map (Fig. 2b). Based on Fig. 2c, the response of the sensor has a linear relationship with the focus of hydrogen peroxide within the vary of 0.5‒240.0 mg/dL. For this assay, the detection restrict is obtained to be 0.15 mg/dL. The analytical traits of the proposed sensor are summarized in Desk 1.

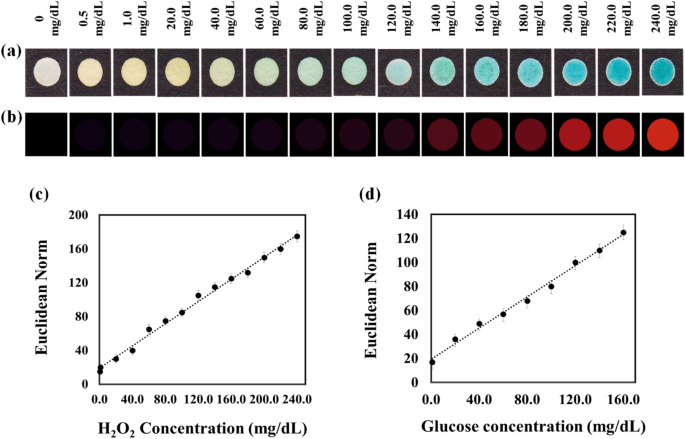

(a) Variation the colour of redox indicator within the presence of H2O2 (0.5–240.0 mg/dL) and glucose (1.0–160.0 mg/dL). (b) The respective coloration distinction map. (c) and (d) The calibration plots for willpower of H2O2 and glucose, respectively. The evaluation was performed at optimum circumstances.
With the intention to assess the reproducibility of the assay, 5 particular person sensors had been uncovered to 220.0Â mg/dL of the analyte, adopted by calculating the relative normal deviation of the determinations after receiving the outcomes. The error charge of 5.07% is indicative of the nice reproducibility of the colorimetric evaluation of hydrogen peroxide.
Optimum circumstances for glucose detection
The distinction between the proposed assay units for H2O2 and glucose detection was solely in a single layer (i.e. the GOx enzyme zone). Due to this fact, the parts of this layer had been optimized for glucose detection, and the outcomes are described within the following textual content. The enzyme zone contains GOx enzyme and an immobilizer. The immobilizing agent causes the enzyme to be bodily connected to the floor of paper, thus avoiding its leakage from the zone29. Usually, BSA is employed as an immobilizer to forestall the GOx leakage29. In sensible evaluation, the enzyme zone was modified by BSA (10.0 mg/mL), adopted by including GOx with the identical focus to this layer. 10.0 μL of glucose resolution (120.0 mg/dL) was injected into the sensor, and TMB coloration adjustments had been monitored.
In step one of optimization, the molar ratio of BSA to GOx was optimized. Based on Fig. S3a, the sensor response will increase by rising the ratio from 0.3 to 0.5. For greater ratios, a downward pattern is noticed within the Euclidean norm on account of a lower within the enzyme exercise at excessive concentrations of BSA. Within the subsequent step, the enzyme focus was modified from 5.0 to 25Â mg/mL. The bar graphs in Fig. S3b present a most worth for a focus of 15.0Â mg/mL. No important change is seen within the coloration of the TMB, and consequently within the response of the sensor at greater concentrations. To attain the optimum response time, coloration adjustments of the sensor had been investigated for a time interval between 0.0 and 10Â min. The graph offered in Fig. S3c reveals that the time required for the detection of glucose is about 7Â min.
Glucose willpower
Totally different concentrations (0.0‒240.0 mg/dL) of glucose resolution had been injected into the ready machine. Based mostly on the calibration plot (Fig. 2d) and the statistical data (Desk 1), linear relationship is established between the assay responses and glucose concentrations within the vary of 1.0‒160.0 mg/dL. On this case, the restrict of detection is obtained to be 0.37 mg/dL. Additionally, the responses of sensor had been collected for 5 particular person analyses of glucose with a focus of 160.0 mg/dL. The error worth of about 5.36% confirms the reproducibility of the willpower course of utilizing the proposed technique.
Analysis of stability
To guage the steadiness of the glucose sensor, a number of paper units had been ready underneath the identical circumstances. The offered sensor was saved in a plastic bag and transferred to a fridge at a temperature of 4 °C. Every sensor was uncovered to a glucose resolution with a focus of 120.0 mg/dL at a time interval of seven days. This course of took 56 days. Determine S4 signifies that the response of the tactic to a specific amount of glucose stays nearly fixed for 42 days, and after that it decreases considerably. This may be on account of a discount within the exercise of the GOx and nanozyme or as a result of oxidation of the TMB throughout bodily and chemical adjustments. Desk S2 illustrates the comparability between the quantities of the Euclidean norm of the sensor within the presence of glucose (120.0 mg/dL) at three completely different occasions, together with instantly after the fabrication, and after 42 and 49 days. Making an allowance for the values obtained for the t-test and the relative error, the colour adjustments of the sensor are discovered to be proportional to the glucose focus solely as much as 42 days after the sensor fabrication.
The impact of overseas species
To proof high-selectivity of the proposed sensor to H2O2 and glucose, These analytes and different efficient overseas species similar to ascorbic acid, dopamine, phenylalanine, glutamate, tryptophan, cysteine, valine, isoleucine, glycine, lysine, histidine, asparagine, leucine, fructose, lactose, maltose, sucrose, glutathione (GSH), human serum albumin (HSA), urea, uric acid, catechol, calcium chloride (CaCl2), potassium chloride (KCl), sodium chloride (NaCl), and magnesium chloride (MgCl2) had been injected individually into the injection zone of the sensor. The focus of every species was adjusted to 120.0 mg/dL. As might be seen in Fig. 3a and b, a major response is recorded for H2O2 and glucose, and the colour adjustments will not be putting for different species.
The response of sensor within the presence of H2O2 (a) and glucose (b) and overseas species, individually. (c) Analysis of the sensor means for willpower of glucose alone or after mixing by a specified overseas species. In every combination, the focus of interferences had been 20 occasions greater than the glucose focus. The evaluation was performed at optimum circumstances.
In a parallel experiment, the sensor was uncovered to pure glucose, and a mix of glucose and a overseas species. The focus of glucose was 120.0 mg/dL, and the quantity of different species was thought-about to be 20 occasions greater than the analyte focus. From Fig. 3c, no important distinction is discovered between the responses of the sensor for the pure glucose and the combination of glucose and overseas species.
Detection of glucose in organic samples
The validity of the measurement assay was evaluated by figuring out the focus of glucose in organic samples. For this goal, saliva and serum samples had been collected from a particular particular person. After the pre-preparation, every organic pattern was divided into 5 particular person tubes with an equal quantity. Subsequent, completely different concentrations of glucose resolution with an equal quantity had been added to every tube. One tube didn’t comprise the usual glucose resolution. Furthermore, every pattern was diluted 10 occasions. 10.0 µL of saliva or serum pattern was injected into the proposed sensor. The sensor responses had been recorded after 7 min. Then again, the quantity of glucose within the ready samples was calculated by a typical medical technique. The outcomes of each the proposed and normal strategies are given in Desk 2. The knowledge from the t take a look at confirms relationship between the info of each strategies. The low worth of the relative error signifies that the proposed technique is extremely correct.
In recent times, the a number of colorimetric-based sensors have been proposed, using peroxidase properties of nanostructures to detect glucose. The catalytic exercise of those nanostructures can have an effect on the sensitivity and selectivity of the sensor response for figuring out a particular analyte. The efficiency of a few of these sensors is offered in Desk S3. As might be seen, the detection limits of sensors made within the resolution are higher than these of paper sensors. Most likely, the catalytic habits of the nanostructure is proscribed after being immobilized on the floor of paper. Nonetheless, sensors fabricated utilizing paper substrates might be made with easy and lower cost design and decide glucose in an in depth focus vary. It’s clear that the very best linear vary is obtained for sericin-AgNPs. After all, in comparison with solution-based sensors, the proposed sensor is extra user-friendly as a result of it’s transportable, wants a decrease quantity of pattern and reagents, and doesn’t require unsafe glassware and expensive units to realize a colorimetric response. Additionally, not like different paper-based sensors, the tactic proposed right here is realized by an origami construction, ensuing within the switch of analyte from the injection zone to the detection zone in a shorter time. Furthermore, the evaluation time is lowered, and interfering brokers of the organic pattern are eradicated.
